BOLE AASHTO M249 thermoplastic road marking paint is a U.S.-standard hot-melt reflective material engineered for highways, airports, and urban roads. It delivers durable, high-visibility markings with strong adhesion on asphalt and concrete, and is designed for international tenders requiring American standards compliance.
Home | Catalog | What is thermoplastic road marking paint used for?
Heating: The solid material is heated to 190–210 °C until molten. Application: Applied by screed, extrusion, or spray at 1.5–3.0 mm thickness. Glass Beads: Immediately dropped on the hot line so beads embed for retroreflectivity. Cooling: Within minutes, it hardens into a skid-resistant, durable stripe.
| No. | Test Item | Specification / Requirement |
|---|---|---|
| 1 | Standard Reference | Complies with AASHTO M 249 – White and Yellow Reflective Thermoplastic Striping Material (Solid Form) |
| 2 | Binder Content | Minimum 18% by weight of total material |
| 3 | Glass Bead Content (Premixed) | 30–40% by weight, using Type I or Type II beads per AASHTO M 247 |
| 4 | Titanium Dioxide (TiO₂) for White | Not less than 10% by weight of total mixture |
| 5 | Specific Gravity | Not to exceed 2.15 |
| 6 | Softening Point | Typically 190 – 210 °C (application temperature range) |
| 7 | Recommended Film Thickness | 1.5 – 3.0 mm (depending on road surface and application method) |
| 8 | Glass Bead Drop-On Rate | 0.3 – 0.4 kg/m² (surface application) |
| 9 | Color Requirements | White and Yellow shall meet color limits and brightness per AASHTO M 249 |
| 10 | Performance Characteristics | High reflectivity, excellent abrasion resistance, skid resistance, weather durability, and deformation resistance |
| 11 | Applicable Surfaces | Asphalt and Portland Cement Concrete (PCC) |
| 12 | Application Temperature | 190 – 210 °C (spray) / 200 – 220 °C (screed or extrusion) |
| 13 | Environmental Compliance | Lead-free pigments; conforms to low-VOC environmental standards |
Note: Values are based on public excerpts and industry practice under AASHTO M 249 guidance. For tender or certification purposes, always refer to the official AASHTO publication.

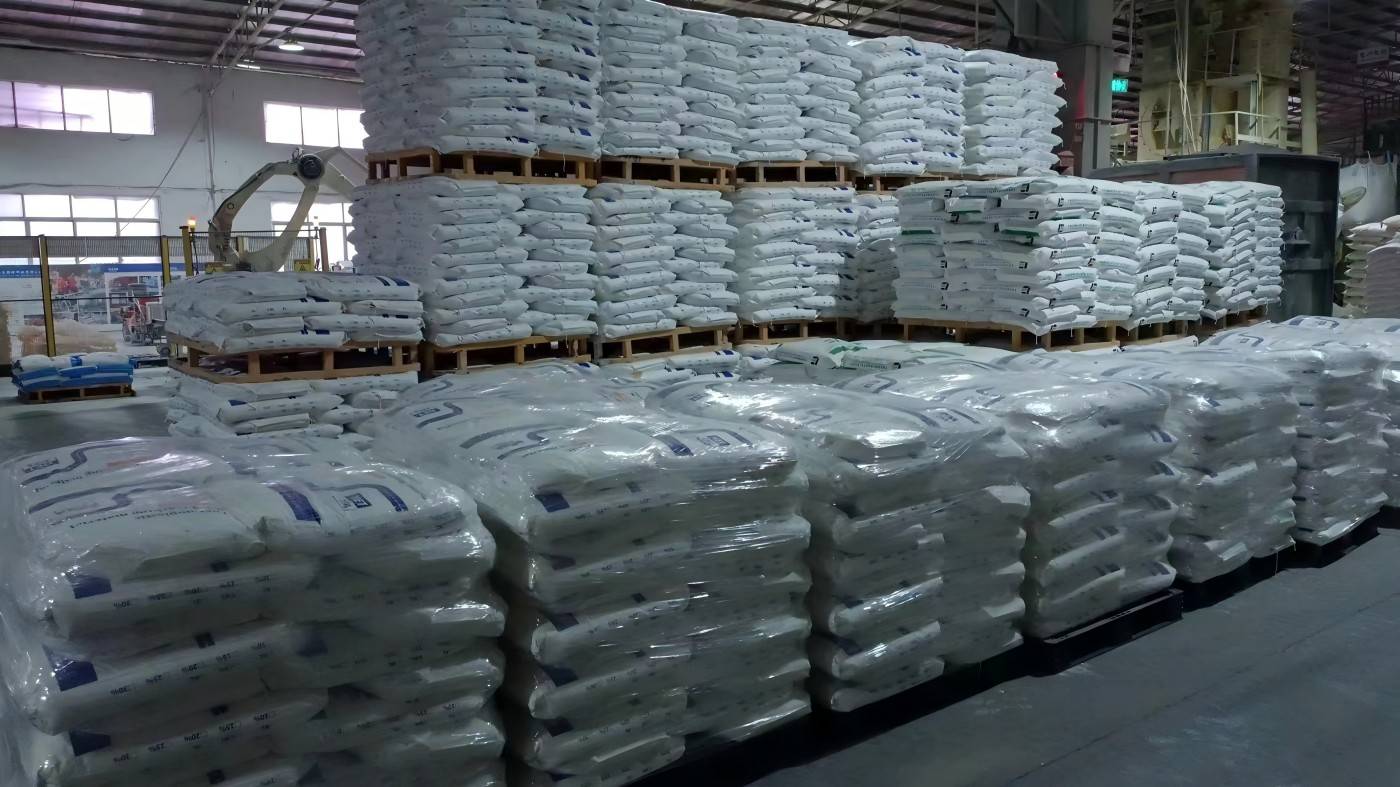

We maintain regular stock and support quick dispatch for urgent orders. For the Americas, typical lead time is 30–60 days by sea; Asia and nearby regions enjoy shorter transit times.
Q1: Can you provide AASHTO test reports?
A1: Yes. We can provide third-party reports confirming compliance with AASHTO M249 (paint) and M247 (glass beads), along with SDS and shipping certificates.
Q2: Can you customize bead percentage (e.g., 30%) and colors?
A2: Yes. We support premixed bead contents (e.g., 18%, 25%, 30%) and white/yellow formulations aligned with AASHTO color/brightness requirements.
Q3: Do you offer machine + paint one-stop solutions?
A3: Yes. BOLE supplies thermoplastic road marking machines, preheaters, and on-site or remote technical guidance to ensure optimal line quality.
