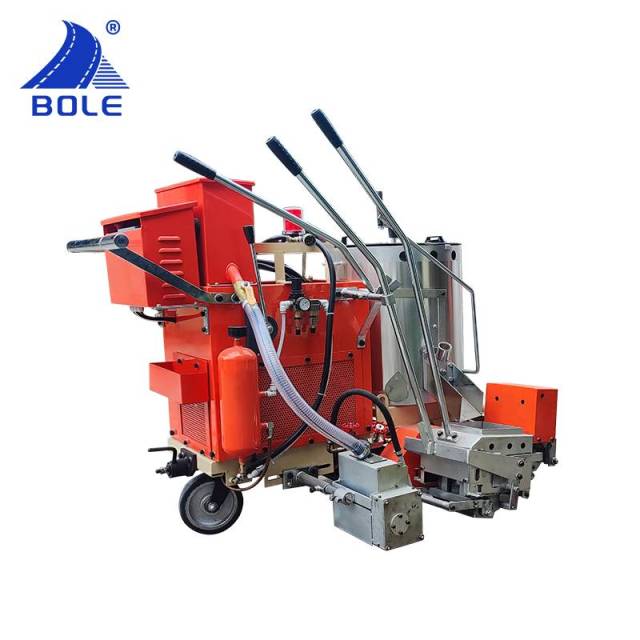

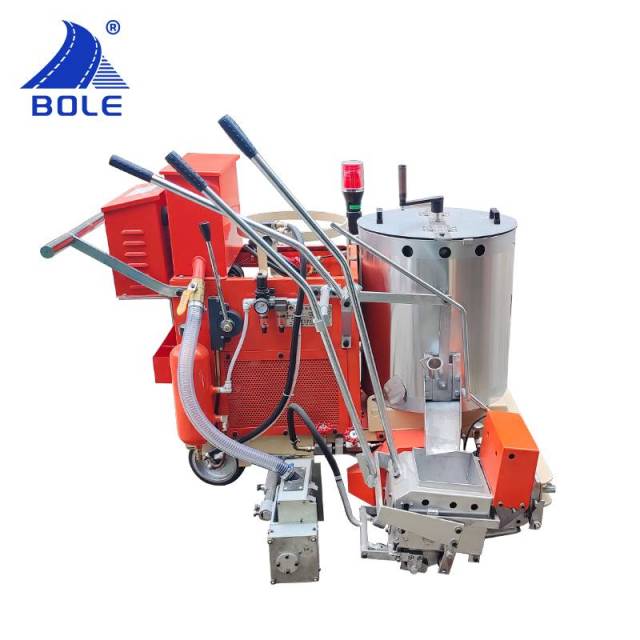

The BL-SC380 Hand-Push Thermoplastic Road Marking Machine—also known as a manual thermoplastic applicator, hot melt road marking equipment, or road line striping machine—is a professional-grade solution for road marking construction. It is specially designed to work with a preheater (hot melt kettle) to apply durable and reflective lines on various road surfaces.
This model features a high-precision scraper-type marking shoe that ensures clean edges, uniform thickness, and neat line ends. Combined with a glass bead dispensing system that synchronizes with the marking speed, it guarantees excellent retroreflectivity for night-time visibility.
Compact in size yet powerful in performance, the BL-SC380 is ideal for projects such as urban roadways, highways, parking lots, industrial zones, and rural roads. It offers flexible line width options, easy manual control, fast heating with LPG, and stable pushing operation—making it the preferred choice for contractors requiring efficiency and precision.
| Item | Specification |
|---|---|
| Model | BL-SC380 |
| Thermoplastic Tank | Double stainless steel insulation barrel, 100 kg capacity, manual mixing, detachable design |
| Glass Bead Container | 10 kg/box |
| Glass Bead Dispenser | Adjustable dispensing width: 50mm – 200mm, with speed-adjustable gearbox |
| Marking Shoe | High-precision ultra-thin scraper-type, 150mm standard width |
| Thickness Adjustment | 1.0 – 3.0 mm (via carbide under-blade with eccentric sleeve) |
| Marking Width Options | 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 450mm (customizable) |
| Wheels | Aluminum alloy wheels with heat-resistant rubber, rear directional locator |
| Heating Method | Liquefied Petroleum Gas (LPG) |
| LPG Tank Capacity | 15 kg |
| Application Speed | 1.5 km/h |
| Dimensions | 1200 × 900 × 950 mm |
| Net Weight | 100 kg |

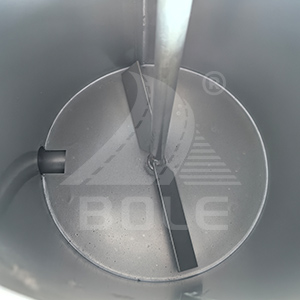

Thermoplastic Paint Tank: The BL-SC380 is equipped with a 100 kg double-layer stainless steel heating tank, ensuring effective heat preservation and continuous operation. The tank features a detachable design with a vertical manual mixer to maintain uniform paint consistency. Customized capacities are available based on order requirements.

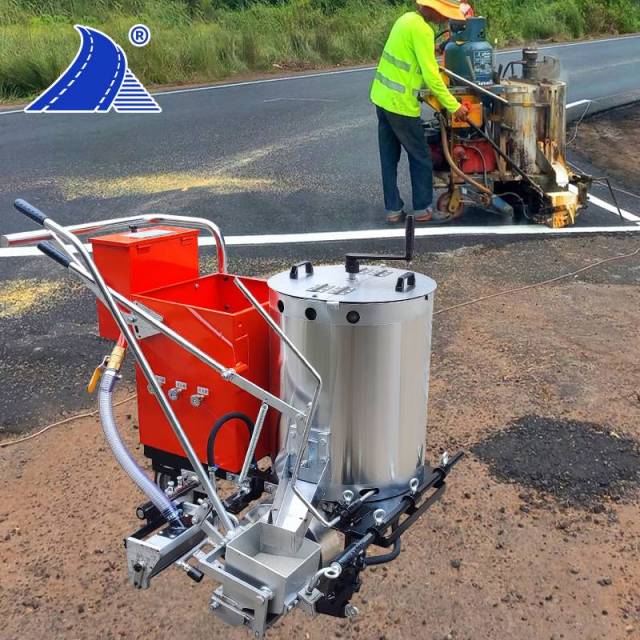

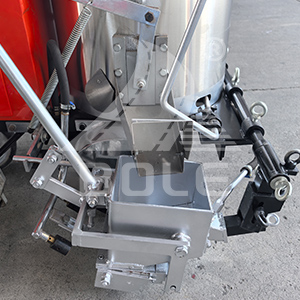

Marking Die Shoe: Our high-precision scraper-type marking shoe ensures clean and consistent lines. Standard marking width is 150mm, with optional sizes ranging from 50mm to 450mm. Customized double-line die shoes are also available upon request.

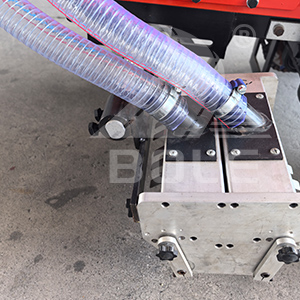

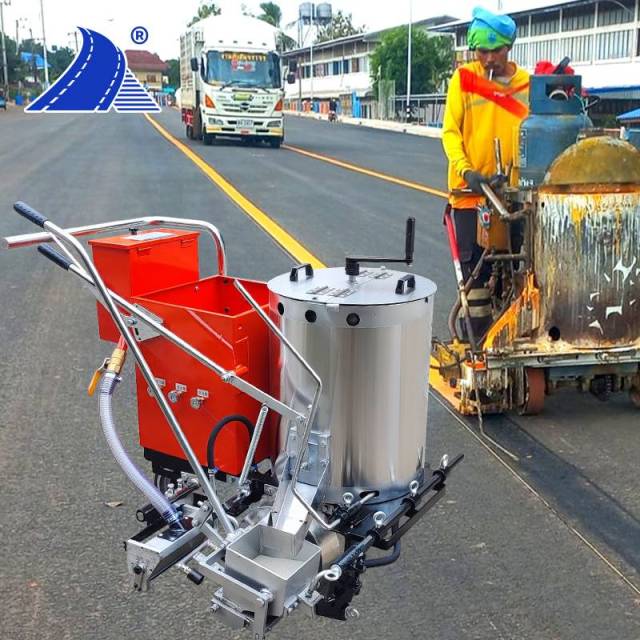

Glass Beads Tank & Dispenser: The machine includes a 10 kg glass beads tank with a tilted bottom to ensure smooth flow. The adjustable glass bead dispenser is strictly matched with specific die shoe sizes to achieve accurate and even distribution. Dispensing width can be adjusted from 50mm to 200mm to meet different project needs.

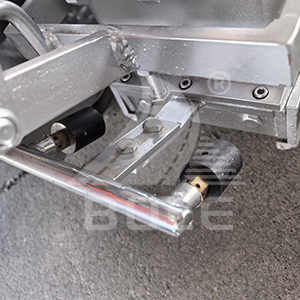

Rear Wheel Holder & Directional Guide: The rear wheel is equipped with a positioning lock device, allowing the operator to switch between free movement and straight-line locking. A guiding rod is also included to help maintain alignment during marking—when aligned with the waterline, the machine is in the correct marking direction.
Additional Parts: Each unit is supplied with essential spare parts and optional accessories to support extended operation. These include heat-resistant rubber wheels, toolkits, and optional configurations for glass bead systems and marking dies.
The BL-SC380 is designed for intuitive and efficient operation. Below is a standard procedure to ensure safe, smooth, and high-quality road marking results.
For detailed training videos or remote guidance, please contact our technical support team.
