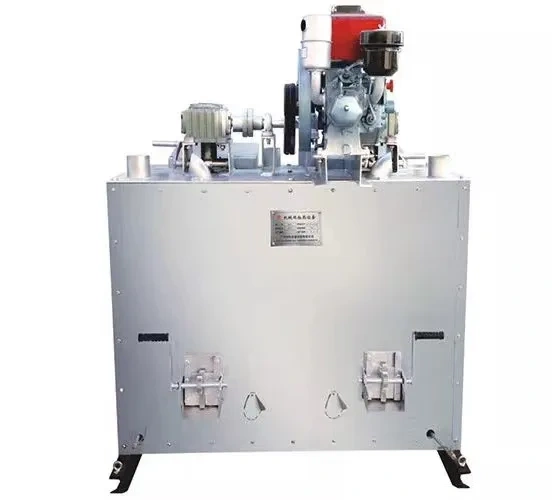

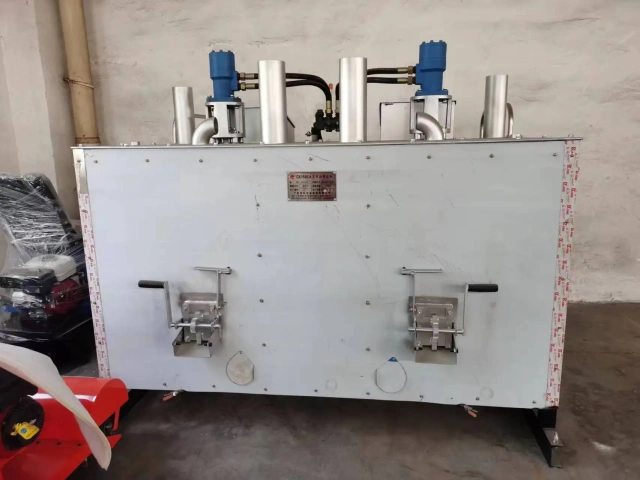

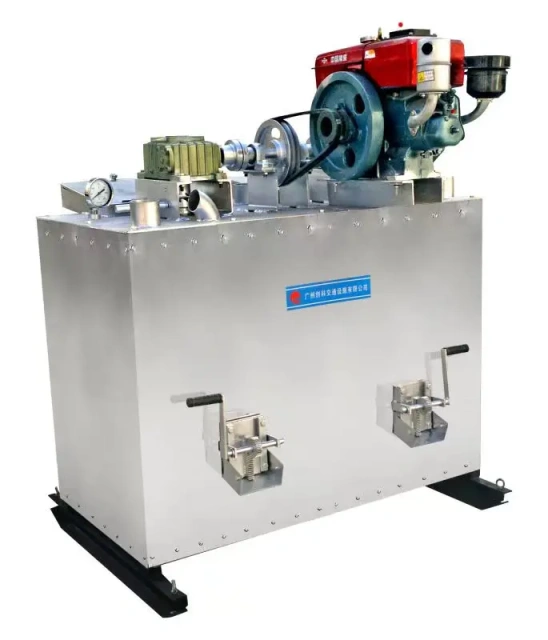

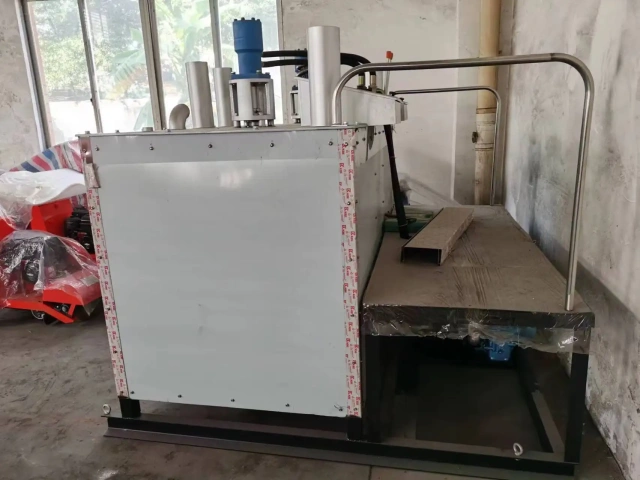

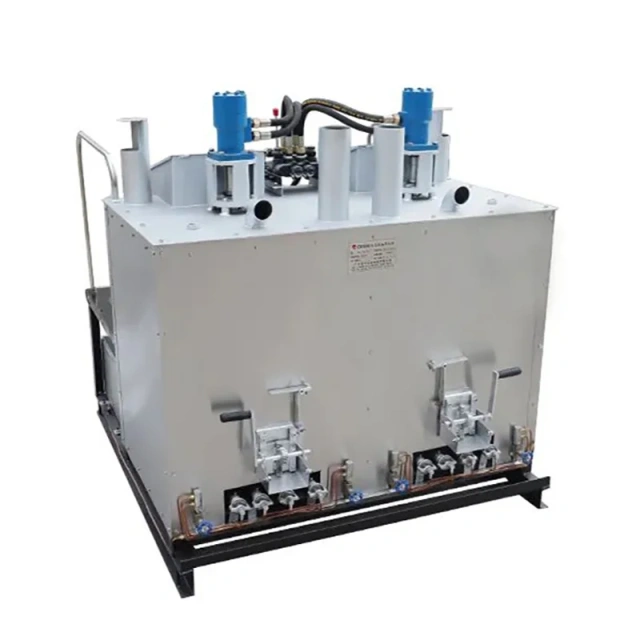

Double Tanks Thermoplastic Road Marking Kettle Road Marking Paint Boiler

No.CK600
Efficient double-tank thermoplastic road marking kettle for seamless road paint application and precise marking on highways and roads.
Specification:
300kgs x 2
400kgs x 2
500kgs x 2
  • Double Tanks Thermoplastic Road Marking Kettle Road Marking Paint Boiler
  • Double Tanks Thermoplastic Road Marking Kettle Road Marking Paint Boiler
  • Double Tanks Thermoplastic Road Marking Kettle Road Marking Paint Boiler
  • Double Tanks Thermoplastic Road Marking Kettle Road Marking Paint Boiler
  • Double Tanks Thermoplastic Road Marking Kettle Road Marking Paint Boiler
  • Double Tanks Thermoplastic Road Marking Kettle Road Marking Paint Boiler
  • Double Tanks Thermoplastic Road Marking Kettle Road Marking Paint Boiler

Description

Specification
Paint barrels:
Double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices
Glass Bead storage box:
10 kg / box
Glass beads sow browser:
synchronous clutch spread with speed gearshift device
Crossed Doo:
High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm
Landing knife:
Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm
Tire:
Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight
line direction
Heating method:
liquefied petroleum gas
Subscript Line Width:
150 mm engineering requirements in accordance with the replacement of different specifications crossed Doo
Size:
1200*900*950 mm
Weight
135kgs

1. Engine: Evaporative water-cooled diesel engine, 7.7PS.
2. Tank: Each tank has a capacity of 300kg, stainless steel cylinder with high carbon steel pot bottom, equipped with a vertical paddle mixer.
3. Structure: Frame structure with thermal insulation materials sandwiched between the tank and the outer cover plate.
4. Heating system: Four-ring high-energy burner powered by liquefied petroleum gas (50kg tank recommended).
5. Operation control: Manual clutch for independent control of each cylinder's mixing operation.
6. Safety features: Overload automatic protection device designed to disengage the diesel engine and reducer in emergencies, ensuring operator safety.
7. Preheater dimensions and weight: 1230x1400x1650mm, weighing 500kg.
8. Packaging: Comes in a wooden box measuring 1450x1480x1650mm, with a total weight of 800kg.


FAQ:
1. Are you a trading company or a manufacturer?
We are a professional manufacturer of thermoplastic reflective road paint.

2. Can I get samples?
Yes, we can provide 1kg or 2kg thermoplastic coating for free, the cost and shipping cost will be refunded on the next order.

3. What is the payment term?
We accept multiple payment methods, such as Alibaba online payment, TT, L/C, Western Union, Paypal, etc.

4. What kind of transportation methods are provided?
We can provide EXW, FOB, CIF services, etc.

5. If we have special requirements, such as glass bead content, special color paint, can you make it?
Yes, we have professional technical team and equipment. Just tell us your requirements for road paint and we can provide you with a solution and quote.

Télécharger

Contactez-nous

Veuillez remplir le formulaire ci-dessous et nous vous contacterons.
Nom*
E-mail*
WhatsApp/Téléphone*
Entreprise
Message
FAQ sur la peinture de marquage routier Bole

Quelle est la quantité minimale de commande (MOQ) pour la peinture de marquage routier thermoplastique ?

La quantité minimale de commande pour notre peinture de marquage routier thermoplastique est de 1 tonne.

Prenez-vous en charge les emballages OEM ou personnalisés pour les commandes de marques privées ?

Oui, nous prenons en charge les OEM, y compris les emballages personnalisés et les marques de distributeur. Nous pouvons également adapter la formulation de notre peinture de marquage routier pour répondre à des normes spécifiques.

À quelles certifications votre peinture est-elle conforme ?

Notre peinture de marquage routier est conforme aux normes SDS, à faible teneur en COV et peut être exportée selon les spécifications BS 3262 et AASHTO sur demande.

Combien de temps prend la livraison dans différentes régions ?

Le délai de livraison varie selon la région : 5 à 15 jours vers l'Asie du Sud-Est, 30 à 50 jours vers l'Afrique et 40 à 60 jours vers les Amériques par voie maritime.

Pouvez-vous fournir une solution complète de marquage routier, incluant les machines et la peinture ?

Oui. Forts de plus de 20 ans d'expérience dans le marquage routier thermoplastique, nous proposons des solutions complètes, incluant la peinture de marquage routier, machines de marquage routier , préchauffeurs et support de projet.

Quelle est la durée de conservation de votre peinture thermoplastique de marquage routier ?

Notre peinture de marquage routier a une durée de conservation allant jusqu'à 2 ans dans des conditions de stockage appropriées.

Pouvez-vous fournir des documents techniques tels que des TDS ou des MSDS ?

Oui, nous pouvons fournir des fiches de données de sécurité (FDS), des fiches de données de sécurité (MSDS) et des certificats d'expédition maritime pour tous nos produits de peinture de marquage routier.

Proposez-vous des formations sur site ou un support technique pour les clients internationaux ?

Oui. Si vous achetez la machine de marquage routier et la peinture chez nous, nous vous proposons un accompagnement technique à distance ou sur site pour votre projet.

Comment votre peinture se compare-t-elle aux autres marques en termes de durabilité et de réflectivité ?

Nous utilisons des matières premières de haute qualité pour garantir que notre peinture de marquage routier offre une excellente durabilité, une forte adhérence et une blancheur supérieure pour une meilleure réflectivité.
