| Title | Content |
|---|---|
| Place of Origin | Guangdong, China |
| Main Raw Material | glass beads, C5 resin |
| Usage | Road Marking Paint, reflective road paint |
| Other Names | Traffic marking road paint, thermoplastic road paint, thermoplastic line marking, thermoplastic road marking paint, thermoplastic paint, thermoplastic marking |
| Application Method | Hot melt |
| State | Powder Coating |
| Brand Name | BOLE |
| Product Name | Road marking paint |
| Drying time | 3–5 Minutes |

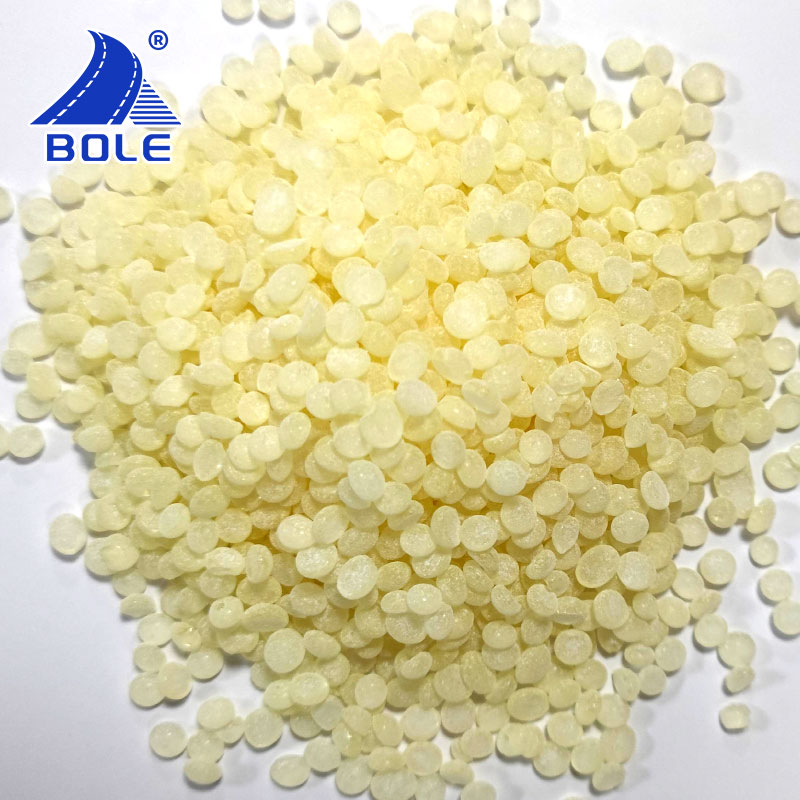

Acts as the primary binder providing adhesion and durability. Common types include C5/C9 hydrocarbon resins and EVA (ethylene-vinyl acetate) resins.
Provides high-visibility white/yellow pigment with UV resistance and anti-fading properties.

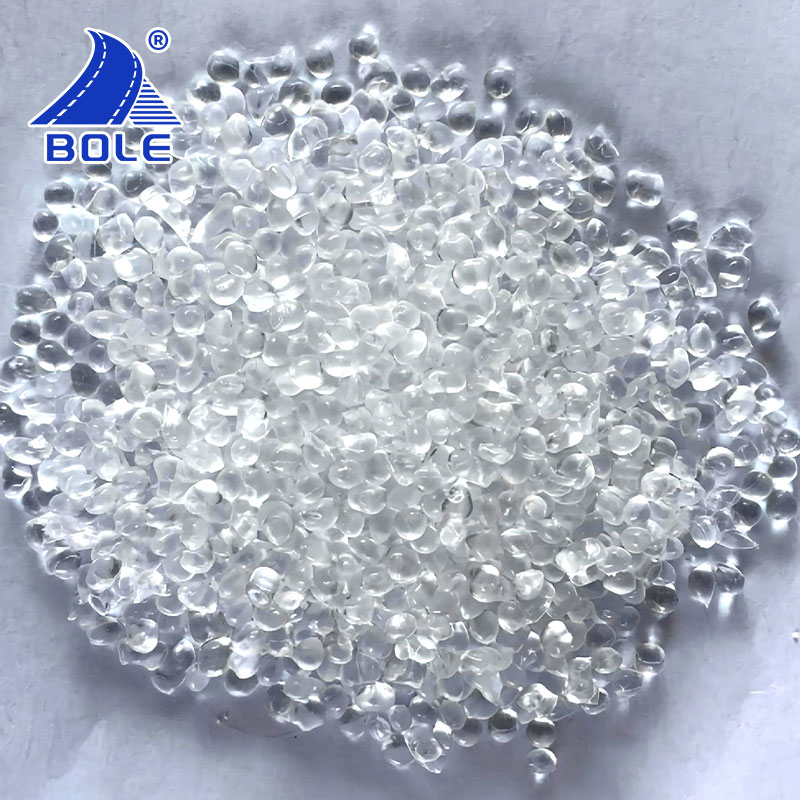

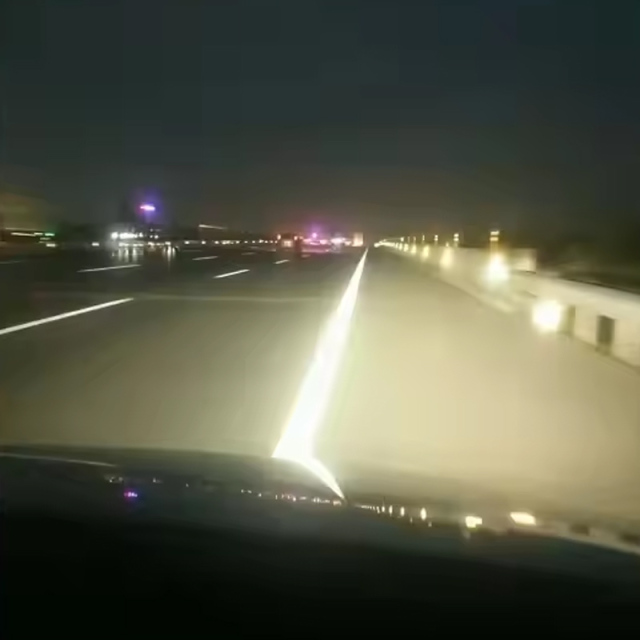

Contains 150-850 micron beads for multi-angle reflectivity. Enhances nighttime visibility through light refraction.
Calcium carbonate and quartz sand improve wear resistance and anti-slip performance while reducing costs.

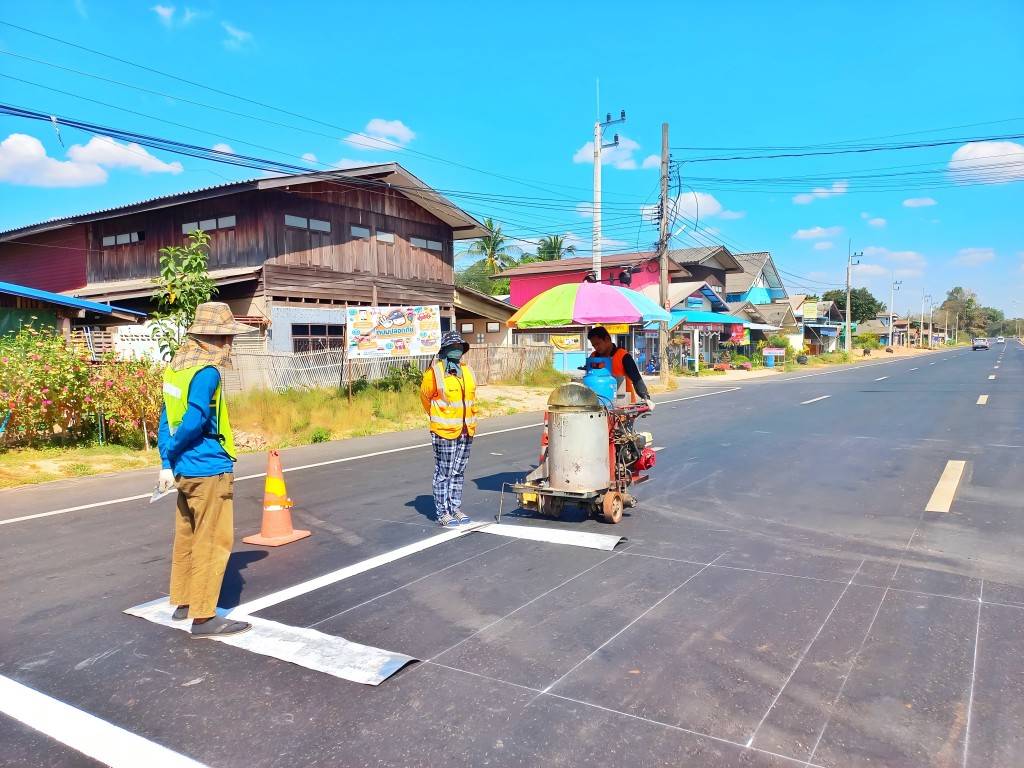

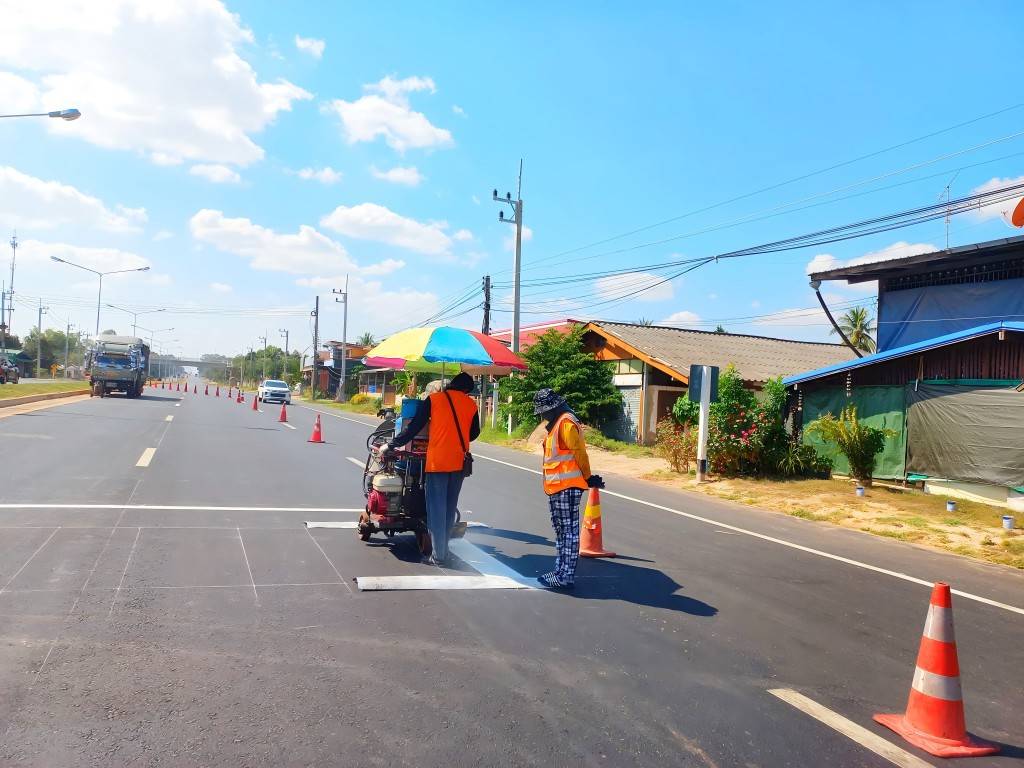

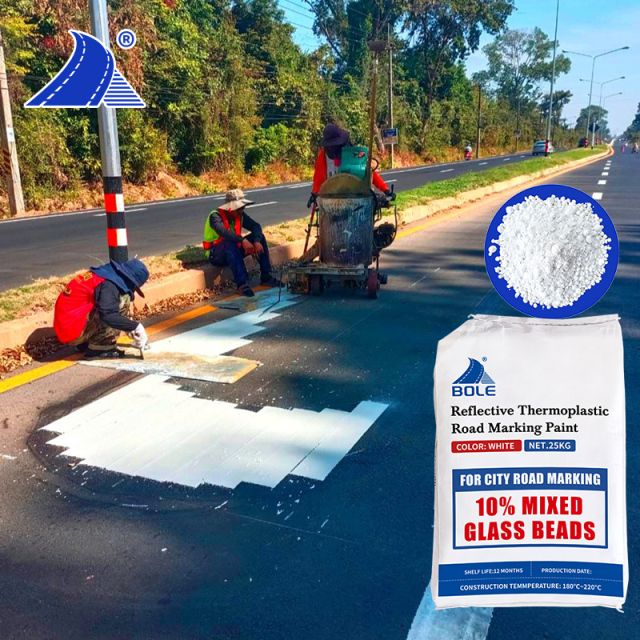

Use screed-type applicators with ±2°C temperature control for 1.5-3.0mm coating thickness.
Apply 300-500g/m² beads during coating using pneumatic spreaders at 45° projection angle.
| Feature | 10% Bead Thermoplastic | Standard Thermoplastic | Water-Based Paint |
|---|---|---|---|
| Initial Reflectivity | 250 mcd | 180 mcd | 90 mcd |
| Service Life | 5 years | 3 years | 9 months |
| Curing Time | 3-5 mins | 5-8 mins | 45-60 mins |
| VOC Content | <5% | <8% | 0% |
