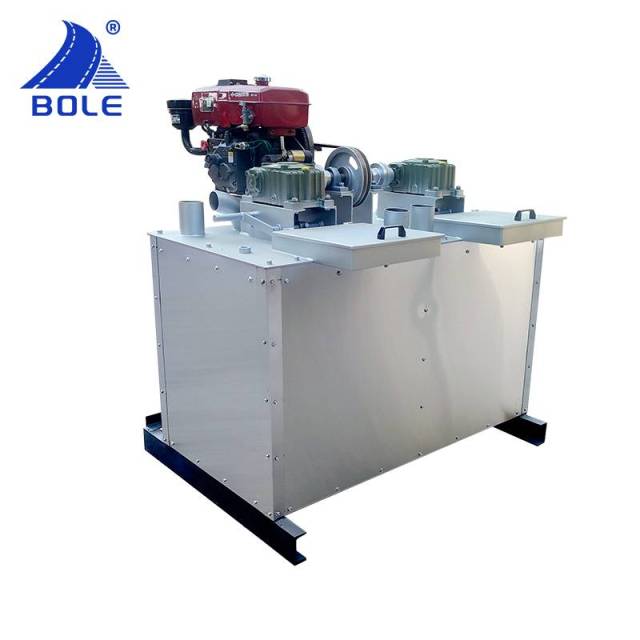

BL-SC600 Mechanistic Double-cylinder Thermoplastic Preheater

I. BL-SC600 Mechanistic Double-cylinder Thermoplastic Preheater Overview

The BL-SC600 Mechanistic Double-cylinder Thermoplastic Preheater is a professional road marking machine developed with patented technology, designed for high-efficiency road marking paint application in large-scale projects. Featuring an innovative mechanical transmission system and dual-cylinder design, this equipment combines stable performance with intelligent safety features, making it the ideal choice for municipal engineering, highways, and professional construction teams requiring high-intensity thermoplastic paint melting.

II. BL-SC600 Mechanistic Double-cylinder Thermoplastic Preheater Key Features

1. Patented Dual-Cylinder Structure

• Equipped with two independent 300kg stainless steel melting tanks, allowing simultaneous melting of different colors/types of road marking paint, improving construction efficiency by 30%.
• High-carbon steel pot base + vertical paddle mixing system ensures even heating without sedimentation (temperature uniformity within ±3°C).

2. High-Efficiency Energy-Saving System

• Imported four-ring high-efficiency burner (thermal efficiency ≥92%), saving 20% fuel compared to traditional models.
• Double-layer insulation design (filled with aerospace-grade aluminum silicate thermal insulation material), reducing heat loss to <5°C per hour.

3. Intelligent Safety Protection

• Overload auto-protection: Diesel engine and reducer automatically disengage within 0.3 seconds in case of abnormal load.
• Emergency braking system: Dual-redundancy hydraulic brakes + mechanical locking for fail-safe operation.

4. Ergonomic Optimization

• Electric-start diesel engine (7.7PS) with manual clutch for flexible single or dual-operator control.
• Anti-slip operation platform (200kg load capacity) and 360° observation window for enhanced usability.

III.BL-SC600 Mechanistic Double-cylinder Thermoplastic Preheater Technical Specifications

IV. Applications

Large-Scale Road Projects

Continuous construction of highway lane dividers and guide strips (recommended for use with 10-ton paint storage tanks).

Municipal Road Marking Updates

Complex pattern applications (e.g., intersections, bus lanes) with dual-tank pre-melting for yellow/white road marking paint.

Specialized Site Markings

Airport runways, port yards, and other high-temperature-resistant markings (supports modified asphalt paint melting).

V. BL-SC600 Mechanistic Double-cylinder Thermoplastic Preheater Usage Precautions

1. Fuel Management

• Use standard 50kg LPG tanks (recommended pressure: 0.8-1.2MPa).
• Check gas pipeline integrity before each shift (soap bubble leak test).

2. Operational Guidelines

• Preheating phase: Start mixing before ignition to avoid localized overheating.
• Material filling: Do not exceed 280kg per tank (10% expansion space required).

3. Maintenance

• Clean paddle residue daily (use specialized solvent).
• Replenish gearbox lubricant (ISO VG320) every 50 operating hours.

4. Safety Warnings

• Never operate in enclosed spaces (minimum ventilation: 200m³/h).
• Keep flammable materials 1m away (fire safety rating: Class A).
