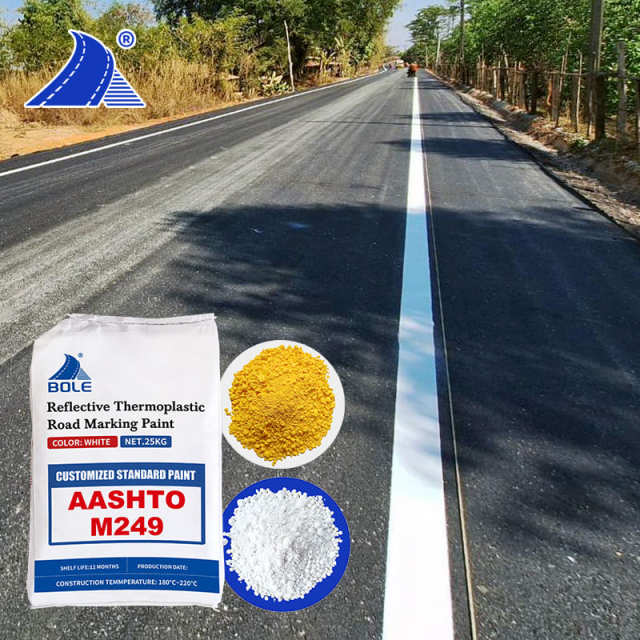

Reflective thermoplastic road marking paint

Name: Reflective thermoplastic road marking paint
Brand: Thermoplastic road marking paint supplier
SKU: Thermoplastic road marking piant
Availability: InStock
Rating: 5 (1 reviews)

No.Thermoplastic road marking piant

Excellent cost-benefit ratio: Provides high-quality performance at a competitive price.
Compliant with AASHTO M-249 and BS3262: Meets international standards including AASHTO M-249 and BS3262.
Ideal viscosity: Ensures higher linear meter yield, reducing material waste.
Strong pavement adherence: Offers excellent adhesion and retro-reflectivity throughout the paint’s life cycle.
Fast drying time: Minimizes downtime and allows for quicker reopening of roads.
Quick delivery and support: Fast shipping and professional installation guidance for your project.
Lower melting temperature: Reduces gas consumption, improving operational efficiency.

GET A QUOTE

Description

Thermoplastic Road Marking Paint Technical Specifications

Attribute	Value
Color	White; Yellow
Flexibility Content %	20±2
Glass Beads	20 minutes
Pigment Mixing	58 maximum
Softening Point (Ring and Ball Method) (Appendix E)	102.5±9.5°C
Density (g/cm³)	2.15 maximum
Brightness (Appendix F)	White/Yellow
Slip Resistance (Appendix J)	45 minutes
Flow Resistance (Appendix H)	Maximum 25
Packaging	25 kg plastic woven bag
Loading Weight per 20ft Container	25 tons

AASHTO M249 & BS3262 Standards Comparison

AASHTO M249 Standard

Components	Specification	Test Result
Resin	≥20%	22%
Titanium Dioxide	≥10%	10.20%
Glass Beads	≥30%	32%

BS3262 Standard

Components	Specification	Test Result
Resin	≥18%	18%
Titanium Dioxide	No specific requirement	Not specified
Glass Beads	≥20%	20%

Comparison with Other Road Marking Paints

Feature	Thermoplastic	Epoxy	Water-Based	MMA
Durability	★★★★☆	★★★☆☆	★☆☆☆☆	★★★★★
Reflectivity	Excellent (with glass beads)	Moderate	Low	Good (with beads)
Application Method	Hot melt (180–220°C)	Cold applied (2K)	Spray or roll	Cold plastic
Drying Time	Within minutes	2–4 hours	10–30 minutes	30–60 minutes
Best Use	Highways, city roads, crossings	Warehouses, parking zones	Temporary markings	Urban intersections, bus lanes
Environmental Resistance	Very good	Excellent (chemical resistant)	Poor	Very good
Cost	Medium	High	Low	High

Product Variants

Paints

OEM/ODM Thermoplastic Road Marking Paint

AASHTO M249 Thermoplastic Road Marking Paint

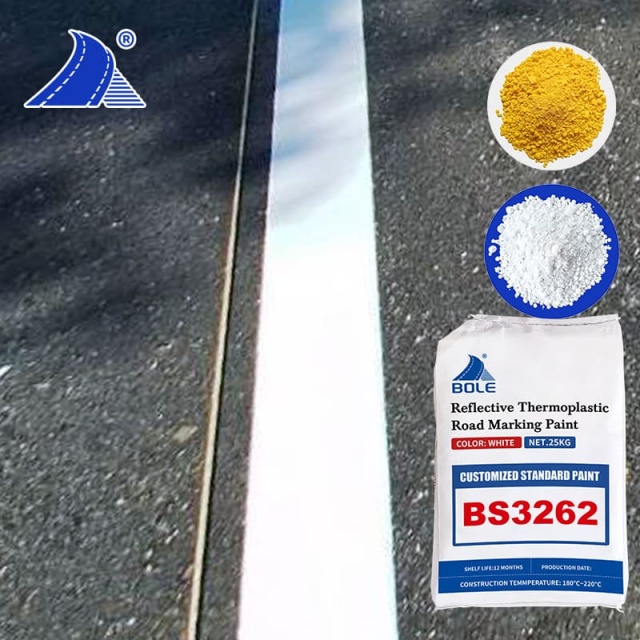

BS3262 Thermoplastic Road Marking Paint

10% Mixed Glass Beads Thermoplastic Road Marking Paint

Thermoplastic Paint

Thermoplastic Road Marking Paint

Thermoplastic road marking paint is a high-performance coating used for road markings, commonly in white and yellow. Depending on national standards, such as the UK's BS3262 and the US's AASHTO M249, thermoplastic paints are formulated to meet specific requirements. As a supplier of thermoplastic road marking paint, Bole offers thermoplastic paints that comply with various international standards and can provide different colours and specifications to meet diverse road construction needs.

Get A Quote

4200㎡

Factory Area in Guangzhou

14+

Factory Area in Guangzhou

100 Tons

Daily Output Capacity

24H

Global Technical Support & Service Response

thermoplastic road marking paint production line

Production Process

Get a quote

The production process of thermoplastic road marking paint involves several steps. First, raw materials such as C5 petroleum resin, polyethylene wax, ethylene, titanium dioxide, chromium yellow, glass beads, and calcium carbonate sand powder are prepared and mixed in precise ratios. The mixture is then heated in a hot-melt kettle to form a liquid. Afterward, the liquid is applied to the road surface through spraying, screeding, or extrusion, followed by cooling and solidification. Reflective glass beads are added for visibility. Finally, the paint undergoes quality control before being packaged in woven plastic bags.

Composition

Thermoplastic road marking paint combines C5 petroleum resin for brightness, polyethylene wax for weather resistance, and ethylene for crack and heat stability. Titanium dioxide ensures whiteness, chromium yellow enhances vivid yellow markings, while glass beads improve reflectivity. Calcium carbonate powder boosts strength and wear resistance, ensuring durability in various conditions.

Internal Mixed Glass Beads

Provides excellent retroreflective performance, improving the reflectivity of the markings.

Titanium Dioxide

Directly affects the whiteness of the paint. The higher the percentage, the higher the whiteness, making the markings brighter and whiter.

C5 Petroleum Resin

Improves brightness and drying time. The higher the percentage, the better the quality and the higher the price.

Construction Process

Step1:Surface Preparation

Before applying the thermoplastic road marking paint, the road surface must be clean and smooth. Workers use brooms or sweepers to remove dust, dirt, and any debris from the surface. If needed, high-pressure cleaning machines may be used to make sure the paint sticks well to the road.

Step2: Marking and Positioning

According to the road marking plan, workers use chalk or marking machines to draw guide lines on the road to show where the markings will go. This ensures the markings are aligned correctly and are the right size.

Step3: Heating the Paint

The thermoplastic paint comes in powder form and needs to be heated in a hot-melt kettle. It is heated to a temperature between 180°C and 220°C until it becomes a liquid. The paint is kept stirring during this process to prevent clumps from forming.

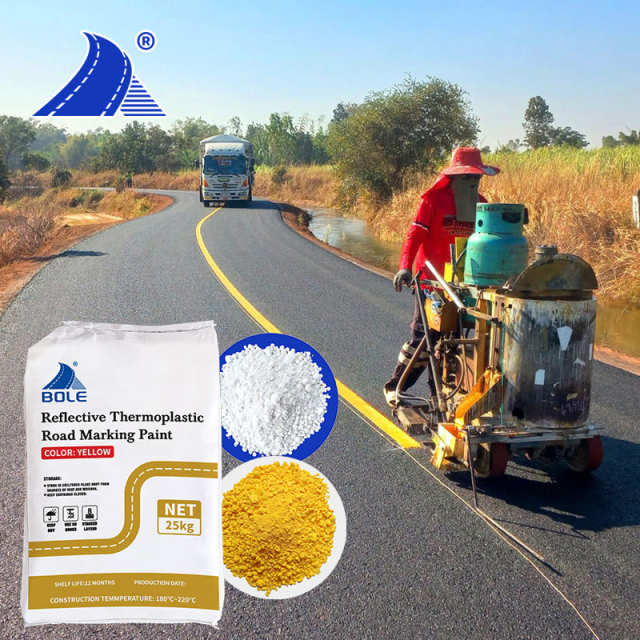

Step4: Applying the Paint

Once the paint is melted, it is applied to the road using a specialized road marking machine. This machine can spray or extrude the paint depending on the type of road marking needed. The paint is spread evenly and quickly to create consistent road lines.

Step5: Sprinkling Glass Beads

To improve the visibility of the road markings, small glass beads are sprinkled on the wet paint. These beads reflect light, making the lines more visible at night or in low light conditions.

Step6: Cooling and Solidifying

After applying the paint, it cools down and hardens quickly, usually within a few minutes. This quick solidifying process allows the road to be opened up for traffic without much delay.

Thermoplastic road marking paint melts into liquid form

Thermoplastic Road Marking Paint Applications

Zebra

Get A Quote

Crossing Roads

Get A Quote

Urban Roads

Get A Quote

Mountain Roads

Get A Quote

Procurement Guide

Different countries have varying standards for thermoplastic road marking paints, leading to differences in composition and pricing. For example, the AASHTO M249 standard in the U.S. requires higher glass bead content compared to the BS3262 standard in the UK. Depending on the type of road project, such as highways, urban streets, or pedestrian crossings, different types of paint may be required to meet specific durability and visibility needs. At Bole, we provide both BS3262 and AASHTO M249 standards, and we can also customize thermoplastic road marking paints to suit various national specifications. Contact us today for tailored solutions that meet your project's requirements!

echnology and Innovation of Thermoplastic Road Marking Paint

Many countries are now pursuing photoluminescent road marking paints, which glow in the dark without the need for external power sources. These paints absorb light during the day and emit it at night, improving road visibility and safety in low-light conditions. We also offer photoluminescent thermoplastic paints as part of our product range, providing an innovative solution for enhanced night-time visibility and long-lasting performance, making roads safer for both drivers and pedestrians.

Machines Used in Road Marking Construction

Road marking machine

Thermoplastic Road Marking Machine

Applies the molten paint to the road using methods like spraying or extrusion, creating clear, durable road markings.

Thermoplastic Preheater

Heats powdered thermoplastic paint to 180-220°C, turning it into a liquid for easy application on the road surface.

Road Marking Line Removal Machine

Removes old road markings, allowing for the application of new lines without interference.

Road Marking Line Removal Machine

Removes old road markings, allowing for the application of new lines without interference.

View More Products

Road Marking Construction and Use Precautions

Road Surface Cleaning:

Before construction, ensure the road surface is thoroughly cleaned, free from dust, oil, water, and impurities to enhance the adhesion of the paint.

Construction Temperature Control:

Hot melt paint should be heated to 180°C-220°C; temperatures outside this range can affect the quality of the application. Use professional hot melt kettle equipment to monitor the temperature in real-time.

Road Surface Pretreatment:

For non-asphalt pavements such as concrete, it is recommended to apply a primer to improve adhesion and prevent peeling in the future.

Glass Beads Spreading:

To ensure reflective performance, the application of glass beads must be synchronized with the hot melt paint. Ensure uniform distribution, and the amount should meet standard provisions (usually 250-400 g/square meter).

Construction Safety:

The construction process should be carried out by trained professionals, using high-temperature protective equipment, and appropriate warning signs should be posted to prevent pedestrians and vehicles from entering the construction zone.

Frequently Asked Questions

FAQ of Bole Road Marking Paint

What is the minimum order quantity (MOQ) for thermoplastic road marking paint?

The minimum order quantity for our thermoplastic road marking paint is 1 ton.

Do you support OEM or custom packaging for private label orders?

Yes, we support OEM, including customized packaging and private labeling. We can also tailor the formulation of our road marking paint to meet specific standards.

What certifications does your paint comply with?

Our road marking paint complies with SDS, low-VOC standards, and can be exported under BS 3262 and AASHTO specifications upon request.

How long does delivery take to different regions?

Delivery time varies by region: 5–15 days to Southeast Asia, 30–50 days to Africa, and 40–60 days to the Americas by sea shipping.

Can you provide a complete road marking solution, including machines and paint?

Yes. With over 20 years of experience in thermoplastic road marking, we provide full solutions including road marking paint, road marking machines, preheaters, and project support.

What is the shelf life of your thermoplastic road marking paint?

Our road marking paint has a shelf life of up to 2 years under proper storage conditions.

Can you provide technical documents like TDS or MSDS?

Yes, we can provide Safety Data Sheets (SDS), MSDS, and sea shipping certificates for all of our road marking paint products.

Do you offer on-site training or technical support for international clients?

Yes. If you purchase both the road marking machine and paint from us, we offer remote or on-site technical guidance for your project.

How does your paint compare to other brands in durability and reflectivity?

We use high-quality raw materials to ensure our road marking paint offers excellent durability, strong adhesion, and superior whiteness for better reflectivity.
